CERN Liquid Hydrogen Bubble Chamber

Example to simulate the CERN 30cm bubble chamber fill with liquid hydrogen and using a pion beam of 330 MeV from PS. The original device was like this:

Note that

You can also download this example as a Jupyter notebook and a plain Julia source file.

Table of contents

Loading the necessary Julia modules

  • Geant4 and Geant4.SystemOfUnits for the Geant4 simulation
  • Printf and GeometryBasics to format the output and handle the geometry
using Geant4
using Geant4.SystemOfUnits
using Printf, GeometryBasics
using CairoMakie, Rotations, LinearAlgebra, IGLWrap_jll  # to force loading G4Vis extension

Define the Detector

The HBC30 is cylinder of 30cm filled with liquid hydrogen We include the HBC30Detector.jl file not to clutter the example.

include(joinpath(@__DIR__, "HBC30Detector.jl"))
hbc30 = HBC30()
Main.var"##230".HBC30(300.0, 50.0, false, 192.50000000000003)

Define the simulation data

The data structure HBC30SimData will be filled by the user actions at the correct moment during the simulation. We collect the points for each track at the step boundaries together with the initial kinetic energy and particle name and charge.

##---Define Simulation Data struct------------------------------------------------------------------
struct Track
    particle::String
    charge::Int
    energy::Float64
    points::Vector{Point3{Float64}}
end
mutable struct HBC30SimData <: G4JLSimulationData
    ##---Run data-----------------------------------------------------------------------------------
    fParticle::String
    fEkin::Float64
    ##---trigger/veto-------------------------------------------------------------------------------
    veto::Bool
    ##---tracks-------------------------------------------------------------------------------------
    tracks::Vector{Track}
    HBC30SimData() = new("", 0.0, false, [])
end

Define the user actions

  • beginrun stores the particle type and initial kinetic energy of the generated primary particle
  • beginevent clear the trigger veto and the list of tracks for the current event
  • pretrackaction pushes a new Track with the particle name, charge, intial energy and initial point
  • posttackactkion is used exclusevily to set the veto if the initial particle exists the world without a sizeable interaction
  • stepaction pushes points to the latest Track in the track list
##---Step action------------------------------------------------------------------------------------
function stepaction(step::G4Step, app::G4JLApplication)::Nothing
    tracks = getSIMdata(app).tracks
    p = step |> GetPostStepPoint |> GetPosition
    auxpoints = step |> GetPointerToVectorOfAuxiliaryPoints
    if auxpoints != C_NULL
        for ap in auxpoints
            push!(tracks[end].points, Point3{Float64}(x(ap),y(ap),z(ap)))
        end
    end
    push!(tracks[end].points, Point3{Float64}(x(p),y(p),z(p)))
    return
end
##---Tracking pre-action----------------------------------------------------------------------------
function pretrackaction(track::G4Track, app::G4JLApplication)::Nothing
    tracks = getSIMdata(app).tracks
    p = GetPosition(track)[]
    particle = track |> GetParticleDefinition
    name = particle |> GetParticleName |> String
    charge = particle |> GetPDGCharge |> Int
    energy = track |> GetKineticEnergy
    push!(tracks, Track(name, charge, energy, [Point3{Float64}(x(p),y(p),z(p))]))
    return
end
##---Tracking post-action----------------------------------------------------------------------------
function posttrackaction(track::G4Track, app::G4JLApplication)::Nothing
    data = getSIMdata(app)
    id = track |> GetTrackID
    energy = track |> GetKineticEnergy
    if id == 1 && energy > 0.80 * data.fEkin # primary particle did not losse any energy
        if track |> GetStep |> GetPostStepPoint |> GetPhysicalVolume == C_NULL  # Only if outside world
            data.veto = true
        end
    end
    return
end
##---Begin-event-action----------------------------------------------------------------------------
function beginevent(::G4Event, app::G4JLApplication)::Nothing
    data = getSIMdata(app)
    data.veto = false
    empty!(data.tracks)
    return
end
##---Begin Run Action-------------------------------------------------------------------------------
function beginrun(run::G4Run, app::G4JLApplication)::Nothing
    data = getSIMdata(app)
    gun = app.generator.data.gun
    data.fParticle = gun |> GetParticleDefinition |> GetParticleName |> String
    data.fEkin = gun |> GetParticleEnergy
    return
end;

Define the primary particle generator

import Geant4.SystemOfUnits:tesla
particlegun = G4JLGunGenerator(particle = "pi+",
                               energy = 330MeV,
                               direction = G4ThreeVector(0,-1,0),
                               position = G4ThreeVector(0, hbc30.worldZHalfLength,0));

Create Magnetic Field

bfield = G4JLUniformMagField(G4ThreeVector(0,0, 1.5tesla));

Create the Application

app = G4JLApplication(; detector = hbc30,                             # detector with parameters
                        simdata = HBC30SimData(),                     # simulation data structure
                        generator = particlegun,                      # primary particle generator
                        field = bfield,                               # uniform magnetic field
                        nthreads = 0,                                 # # of threads (0 = no MT)
                        physics_type = FTFP_BERT,                     # what physics list to instantiate
                        stepaction_method = stepaction,               # step action method
                        begineventaction_method = beginevent,         # begin-event action (initialize per-event data)
                        pretrackaction_method = pretrackaction,       # pre-tracking action
                        posttrackaction_method = posttrackaction,     # post-tracking action
                        beginrunaction_method = beginrun              # begin run action
                      );

**************************************************************
 Geant4 version Name: geant4-11-02-patch-01 [MT]   (16-February-2024)
                       Copyright : Geant4 Collaboration
                      References : NIM A 506 (2003), 250-303
                                 : IEEE-TNS 53 (2006), 270-278
                                 : NIM A 835 (2016), 186-225
                             WWW : http://geant4.org/
**************************************************************

Draw and trigger functions

# Draw detector
function drawdetector(s, app)
    world = GetWorldVolume()
    Geant4.draw!(s, world)
end
# Draw event
function drawevent(s, app)
    data = app.simdata[1]
    # clear previous plots from previous event
    tobe = [p for p in plots(s) if p isa Lines || p isa Makie.Text]  # The event is made of lines and text
    for p in tobe
        delete!(s,p)
    end
    # draw new event
    for t in data.tracks
        style = abs(t.charge) > 0. ? :solid : :dot
        lines!(s, t.points, linestyle=style)
        if t.energy > data.fEkin/20
            text!(s, t.points[end], text=t.particle)
        end
    end
end

# Very simplistic trigger to get interesting events to plot
function nexttrigger(app)
    data = app.simdata[1]
    beamOn(app,1)
    n = 1
    while data.veto
        beamOn(app,1)
        n += 1
    end
    println("Got a trigger after $n generated particles")
end;

Configure and Initialize

configure(app)
initialize(app)

ui`/tracking/storeTrajectory 2` ## store auxiliary points to smooth the trajectory
0

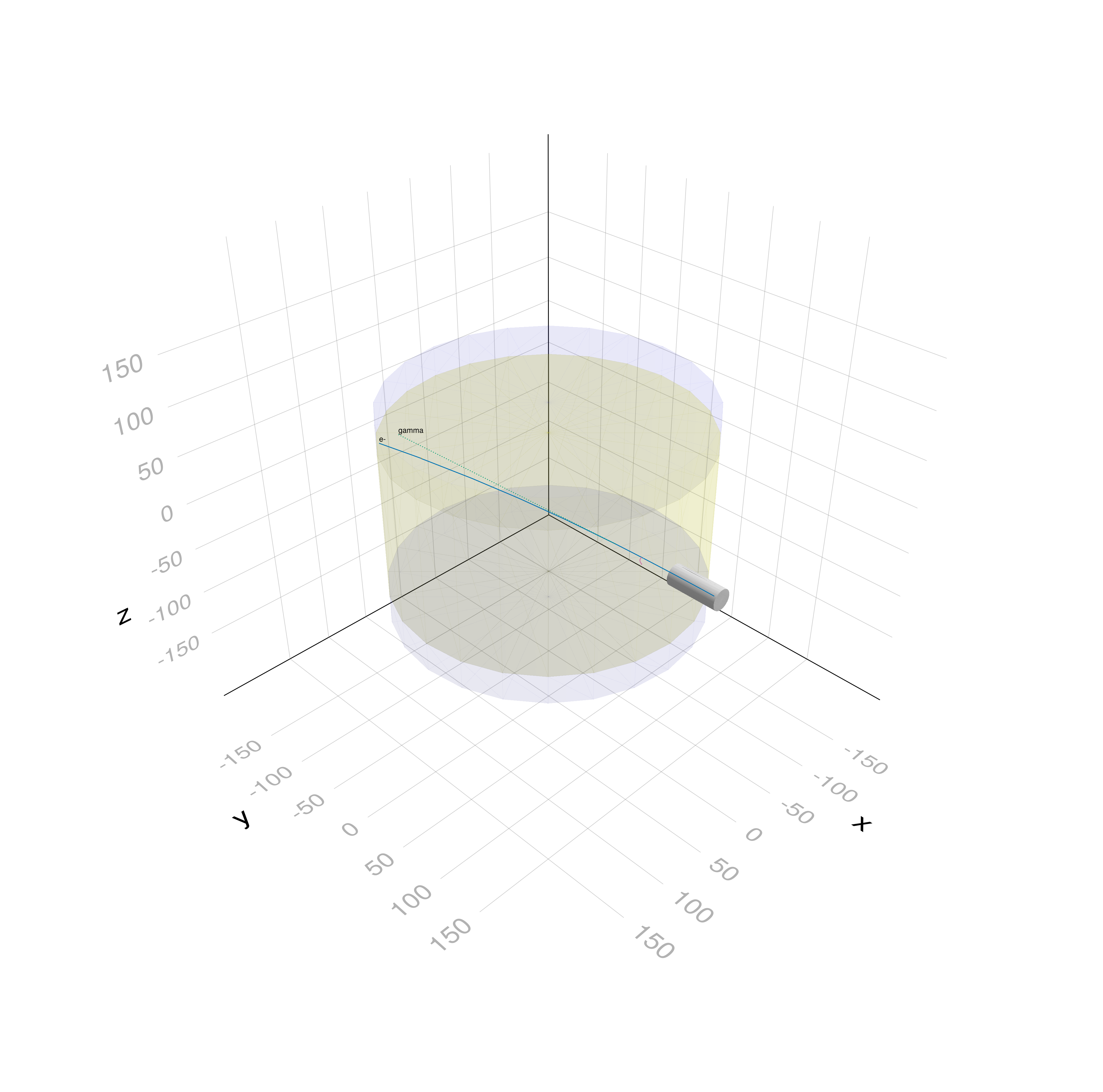

Draw detector and first event that triggers

fig = Figure(size=(2048,2028))
s = LScene(fig[1,1])

drawdetector(s, app)
nexttrigger(app); drawevent(s, app)

PNG(fig)

Change the energy and type of particle and draw the next event that triggers

SetParticleEnergy(particlegun, 1GeV)
SetParticleByName(particlegun, "e-")

fig = Figure(size=(2048,2028))
s = LScene(fig[1,1])

drawdetector(s, app)
nexttrigger(app); drawevent(s, app)

PNG(fig)
