Geant4 Solids

Notebook/script to exercise all the types of solids defined in Geant4.

Table of contents

• G4Box
• G4Tubs
• G4CutTubs
• G4Cons
• G4Para
• G4Trd
• G4Trap
• G4Sphere
• G4Orb
• G4Torus
• G4Polycone
• G4GenericPolycone
• G4Polyhedra
• G4EllipticalTube
• G4Ellipsoid
• Boolean Solids
• • G4SubtractionSolid
  • G4IntersectionSolid
  • G4UnionSolid

using Geant4
using Geant4.SystemOfUnits
using CairoMakie
using GeometryBasics, Rotations, LinearAlgebra, IGLWrap_jll  ## to force loading G4Vis extension

G4Box

box = G4Box("Box", 2,3,4)
img = draw(box;color=:green)

G4Tubs

Cylindrical Section or Tube

• name::String
• rmin::Float64
• rmax::Float64
• dz::Float64
• ϕ₀::Float64
• Δϕ::Float64

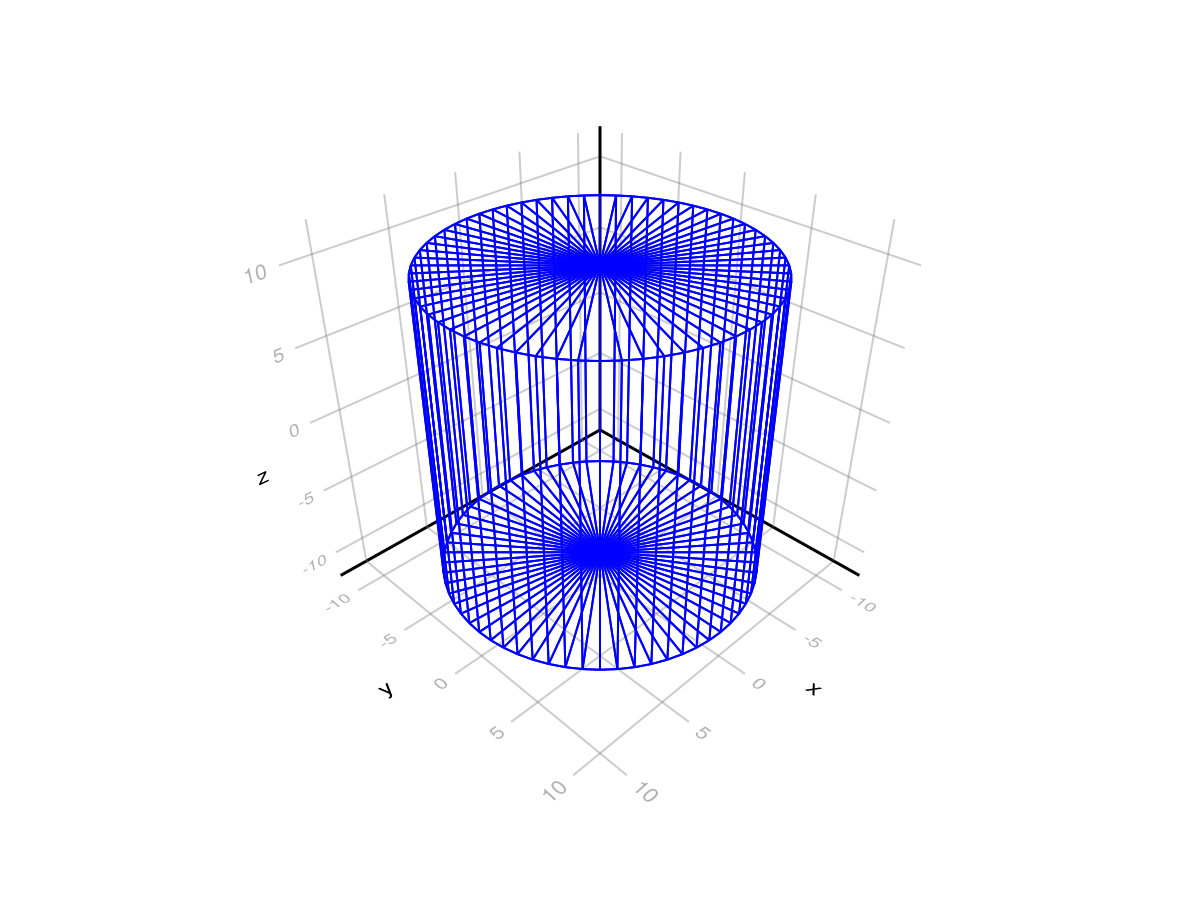

tub1 = G4Tubs("tub1",0,10,10,0,2π)
img = draw(tub1, wireframe=true, color=:blue)

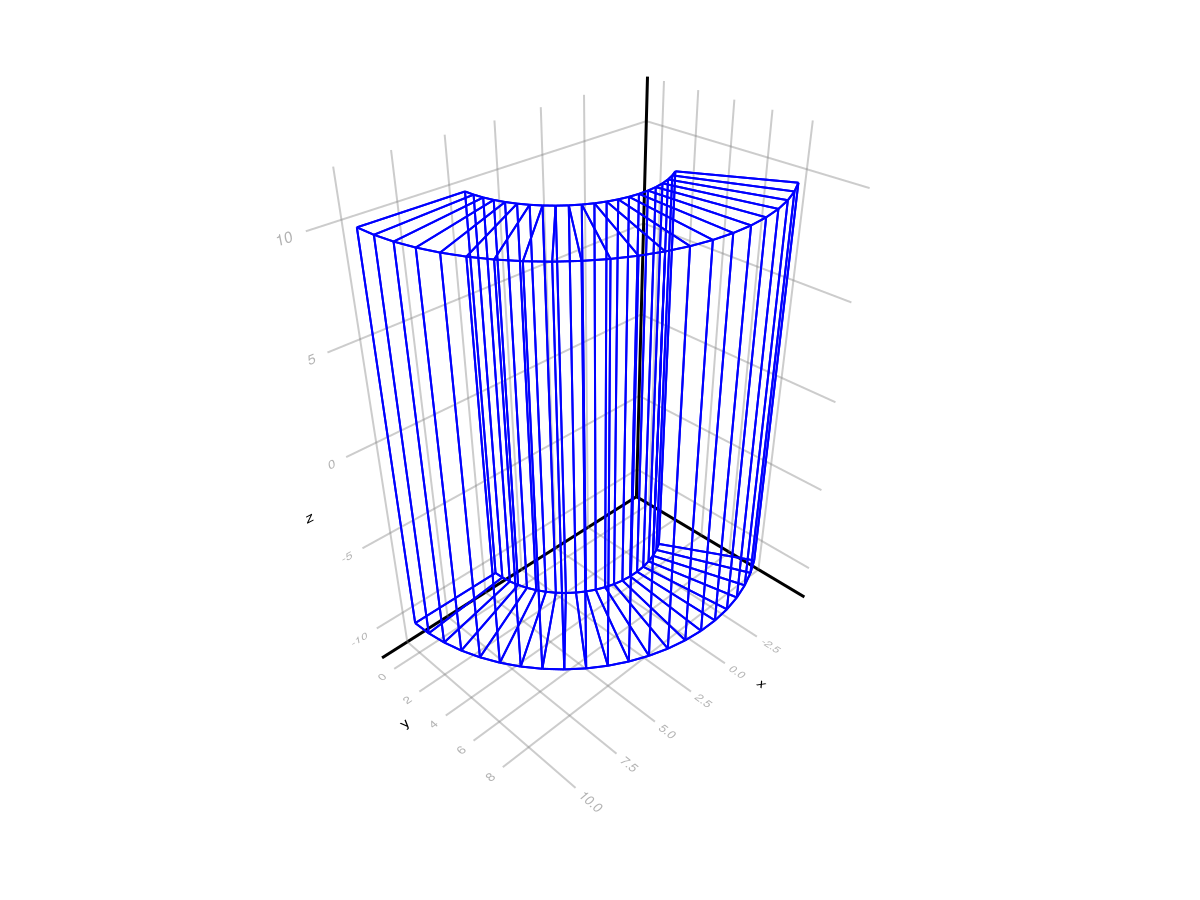

tub2 = G4Tubs("tub2",5,10,10,0, 2π/3)
img = draw(tub2, wireframe=true, color=:blue)

G4CutTubs

Cylindrical Cut Section. A cut in Z can be applied to a cylindrical section to obtain a cut tube.

Arguments:

• name::String
• rmin::Float64
• rmax::Float64
• dz::Float64
• ϕ₀::Float64
• Δϕ::Float64
• lownormal::G4ThreeVector
• highnormal::G4ThreeVector

ctub = G4CutTubs("ctub", 12, 20, 20, 0, 3π/2, G4ThreeVector(0,-0.7,-0.71), G4ThreeVector(0.7,0,0.71))
img = draw(ctub, wireframe=true, color=:blue)

G4Cons

• name::String
• rmin1::Float64
• rmax1::Float64
• rmin2::Float64
• rmax2::Float64
• dz::Float64
• ϕ₀::Float64
• Δϕ::Float64

cone1 = G4Cons("cone1", 0, 10, 0, 5, 10, 0, 2π)
img = draw(cone1, color=:blue, wireframe=true)

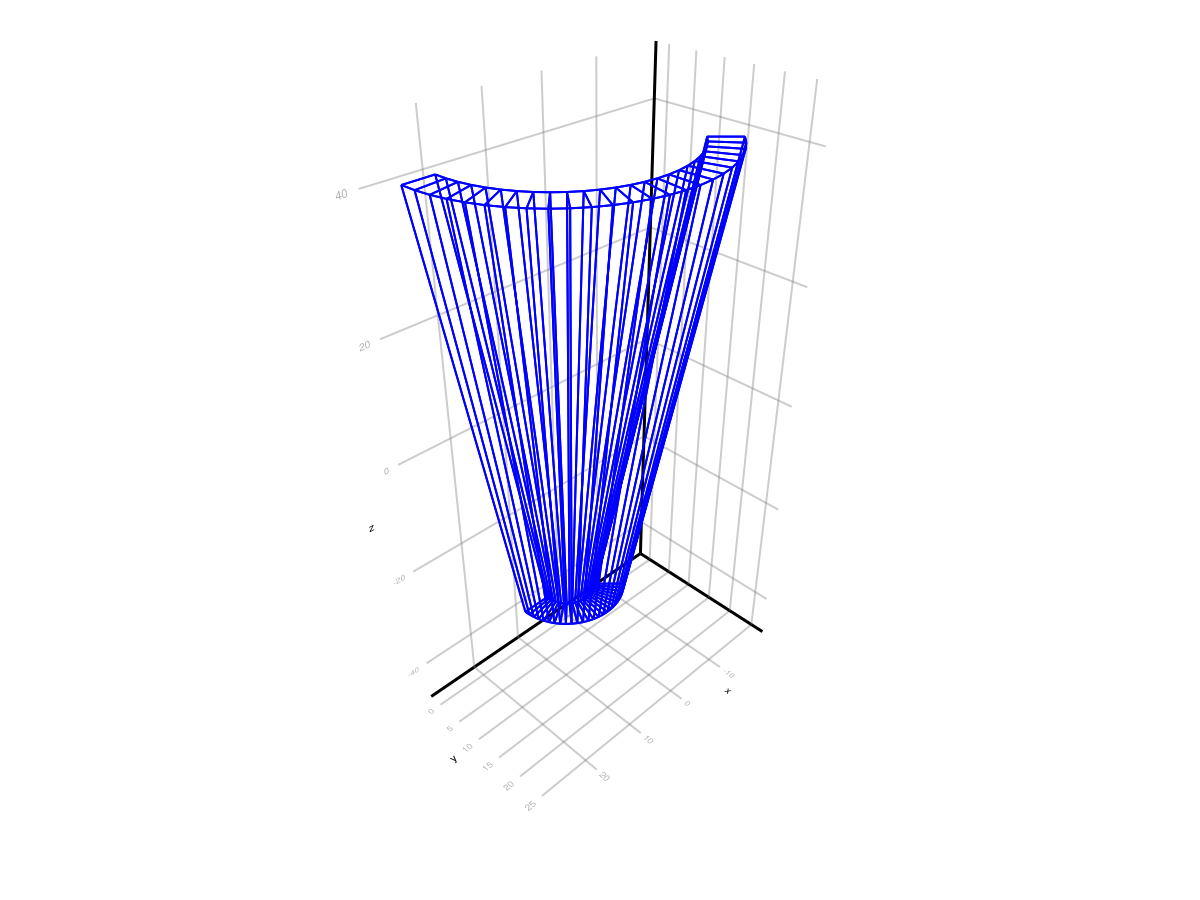

cone1 = G4Cons("cone1", 5, 10, 20, 25, 40, 0, 3π/4)
img = draw(cone1, color=:blue, wireframe=true)

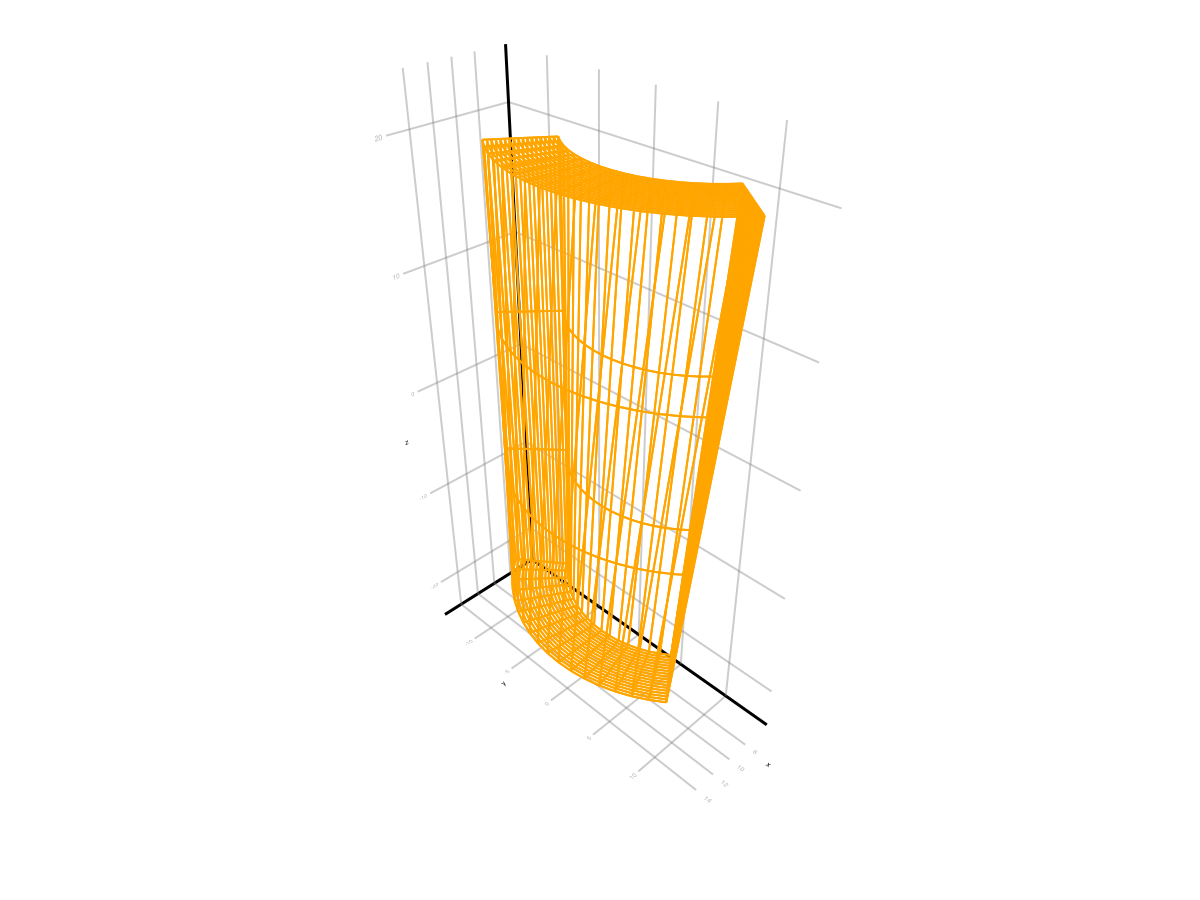

cone1 = G4Cons("cone1", 5, 10, 2, 5, 5, 0, π/2)
img = draw(cone1, color=:orange, shading=true)

G4Para

A parallelepiped is constructed using: | parameter | description | | :–––– | :––––– | | dx,dy,dz | Half-length in x,y,z | | alpha | Angle formed by the Y axis and by the plane joining the centre of the faces parallel to the Z-X plane at -dy and +dy | | theta | Polar angle of the line joining the centres of the faces at -dz and +dz in Z | | phi | Azimuthal angle of the line joining the centres of the faces at -dz and +dz in Z |

para = G4Para("para", 20,30,30, 0, π/4, π/6)
img = draw(para, wireframe=true)

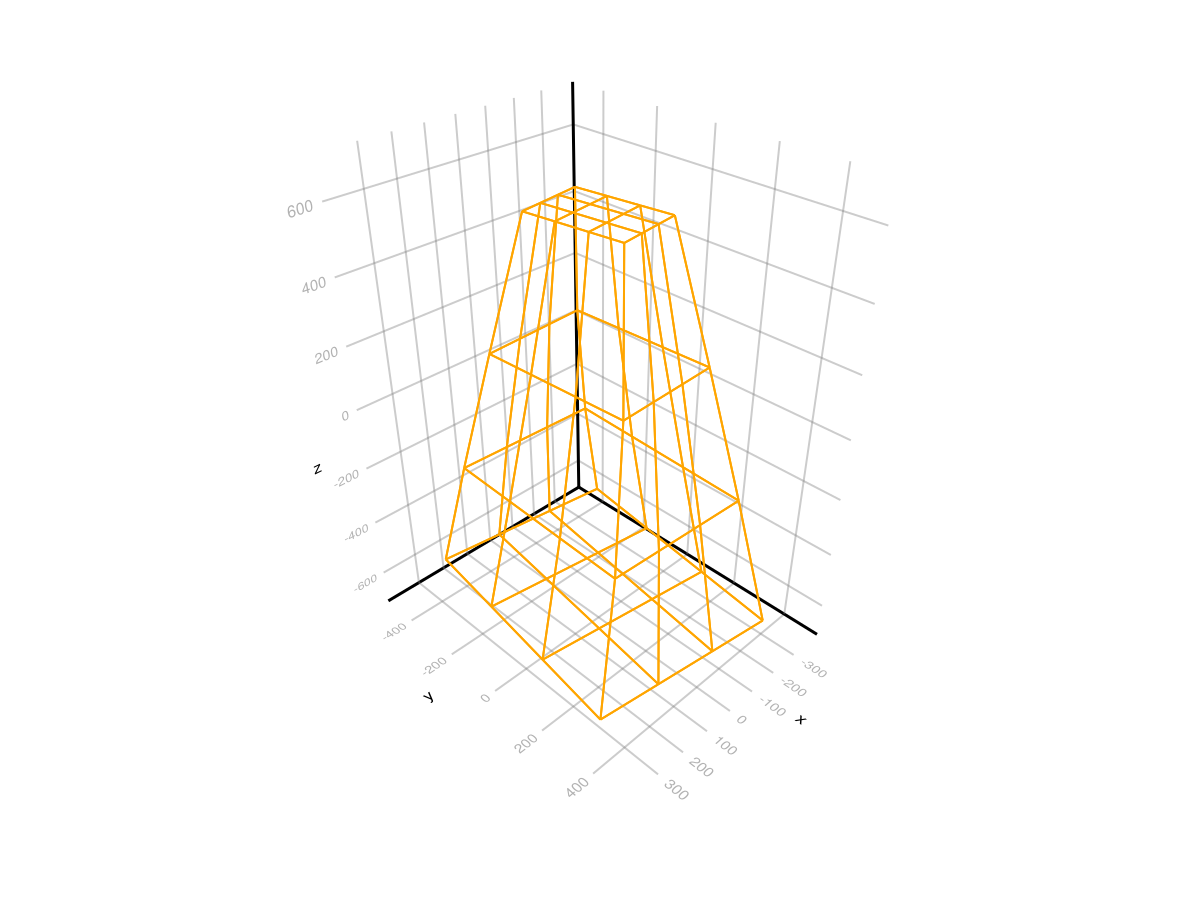

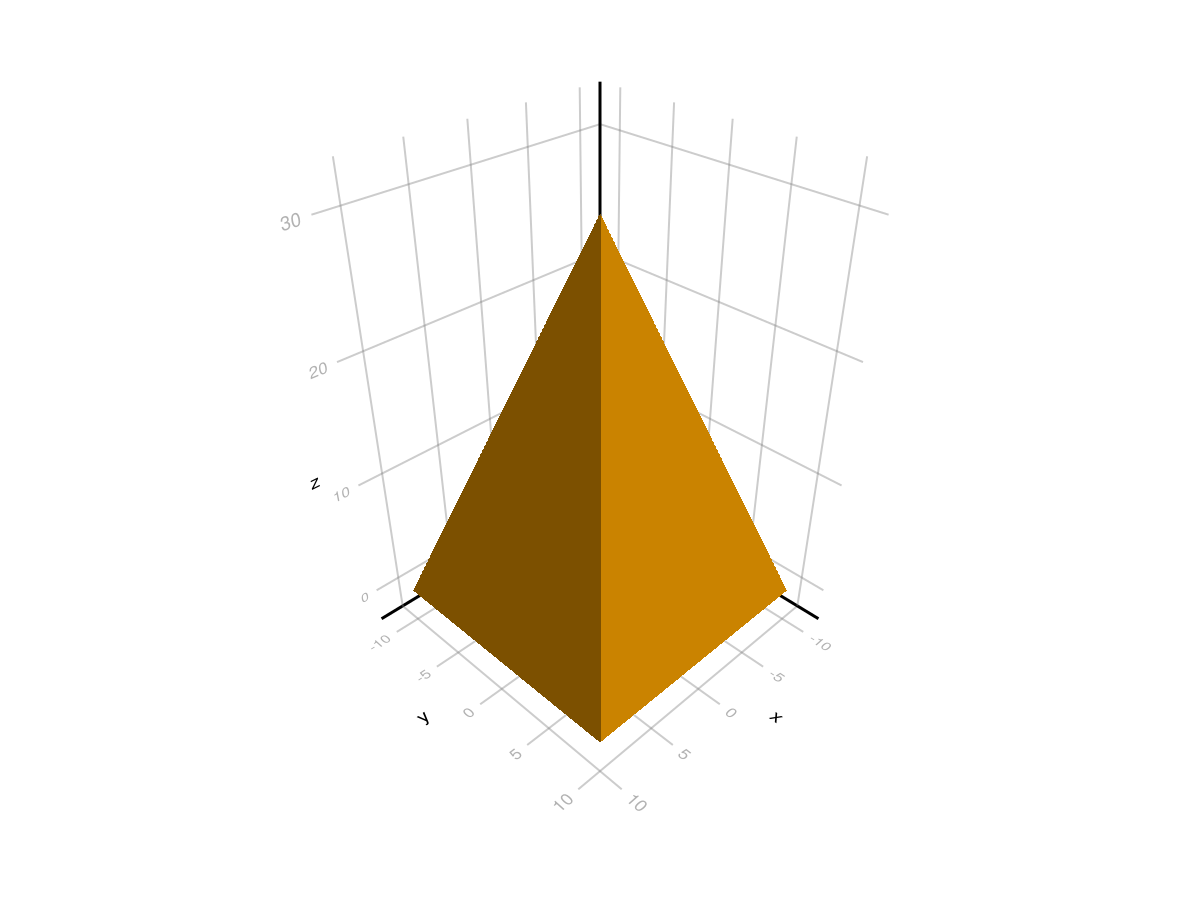

G4Trd

A trapezoid is constructed using:

• x1::Float64 XHalfLength1
• x2::Float64 XHalfLength2
• y1::Float64 YHalfLength1
• y2::Float64 YHalfLength2
• z::Float64 ZHalfLength

trd1 = G4Trd("trd1", 10, 5, 10, 5, 5)
img = draw(trd1, wireframe=true, color=:blue)

G4Trap

To build a generic trapezoid, the G4Trap class is provided. G4Trap is a solid with six trapezoidal faces, it has two bases parallel to the XY-plane and four lateral faces. The bases are located at the same distance from the XY-plane, but on opposite sides from it. Each of the bases has two edges parallel the X-axis. Let’s call the line joining middle point of these edges - the centre line of the base, and the middle point of this line - the centre of the base. An important property of G4Trap is that the line joining the centres of the bases goes through the origin of the local coordinate system.

trap = G4Trap("trap", 60, 20deg, 5deg, 40, 30, 40, 10deg, 16, 10, 14, 10deg)
img = draw(trap, wireframe=true, color=:green)

G4Sphere

• rmin::Float64 inner radius
• rmax::Float64 outer radius
• ϕ₀::Float64 origin phi angle [0,2π]
• Δϕ::Float64 delta phi angle
• θ₀::Float64 origin theta angle [0,π]
• Δθ::Float64 delta theta angle

sph = G4Sphere("sphere", 7,10, 0, pi/2, pi/4, pi/2 )
img = draw(sph, wireframe=true, color=:gray)

G4Orb

Complete sphere

orb = G4Orb("orb", 10)
img = draw(orb, wireframe=false, color=:green)

G4Torus

A torus is constructed using:

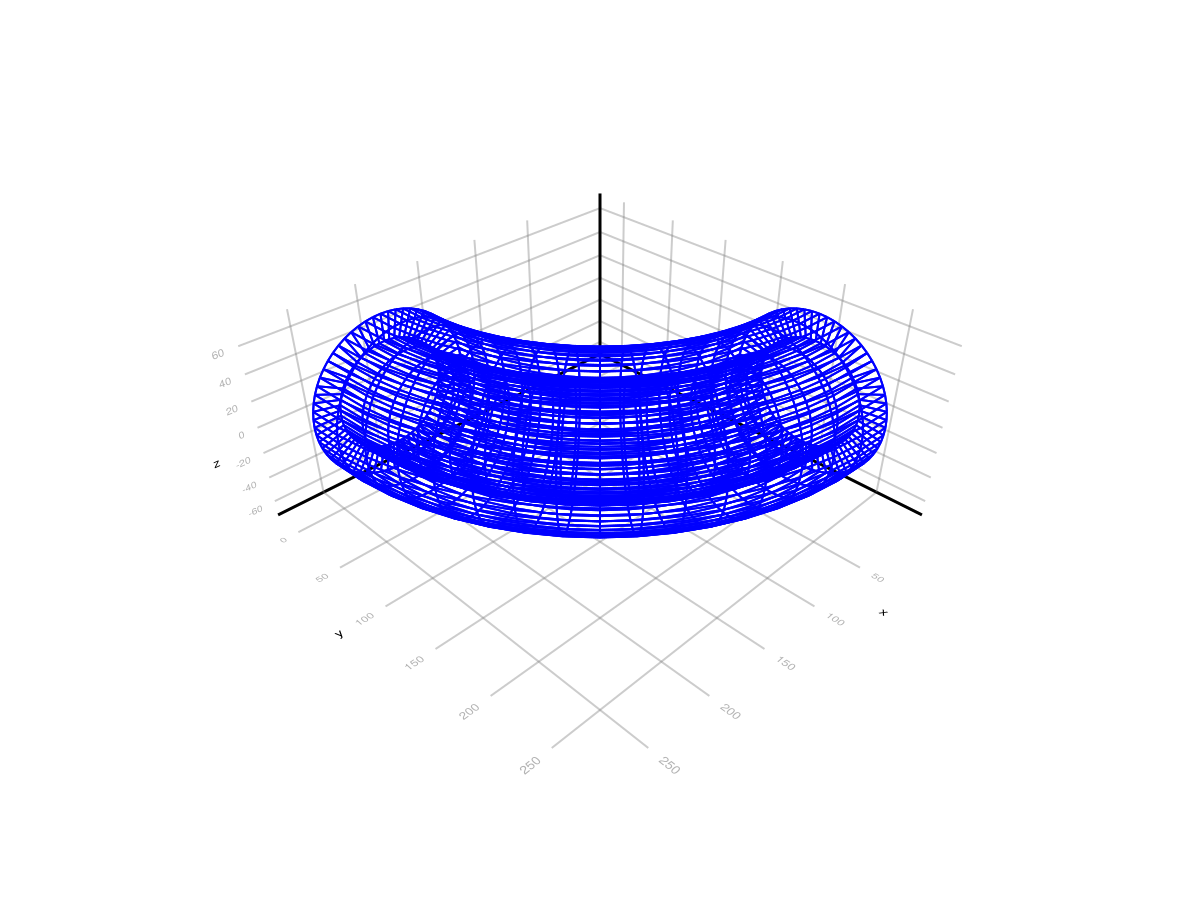

torus = G4Torus("torus", 40, 60, 200, 0, π/2)
img = draw(torus, wireframe=true, color=:blue)

img = drawDistanceToOut(torus, 100000)

G4Polycone

A polycone is constructed using:

pcon = G4Polycone("pcone", π/4, 3π/2, 9,
                  [ 5., 7., 9., 11., 25., 27., 29., 31., 37. ],
                  [ 0., 0., 0., 0., 0., 0., 0., 0., 0. ],
                  [ 0., 10., 10., 5. , 5., 10. , 10. , 2., 2.]
                 )
img = draw(pcon, wireframe=true, color=:blue)

G4GenericPolycone

A genric polycone is constructed using:

gpcon = G4GenericPolycone("pcone", 0, π, 4,
                         [ 5., 10., 10., 5.,],
                         [ 0., 10., 20., 30.]
                        )
img = draw(gpcon, wireframe=true, color=:blue)

G4Polyhedra

A polyhedra is constructed using:

pgon = G4Polyhedra("pgon", -π/4, 5π/4, 3, 7,
                  [ 0., 5., 8., 13. , 30., 32., 35. ],
                  [ 0., 0., 0., 0., 0., 0., 0. ],
                  [ 0., 15., 15., 4., 4., 10., 10.])
img = draw(pgon, wireframe=true, color=:blue)

G4EllipticalTube

A tube with an elliptical cross section with elliptical semi-major and semi-minor axes along the X and Y cartesian axes.

etub = G4EllipticalTube("etube", 5., 10., 20.)
img = draw(etub, wireframe=true, color=:green)

G4Ellipsoid

The general ellipsoid with possible cut in Z

ellip = G4Ellipsoid("ellip", 10., 20., 50., -10., 40.)
img = draw(ellip, wireframe=true, color=:green)

Boolean Solids

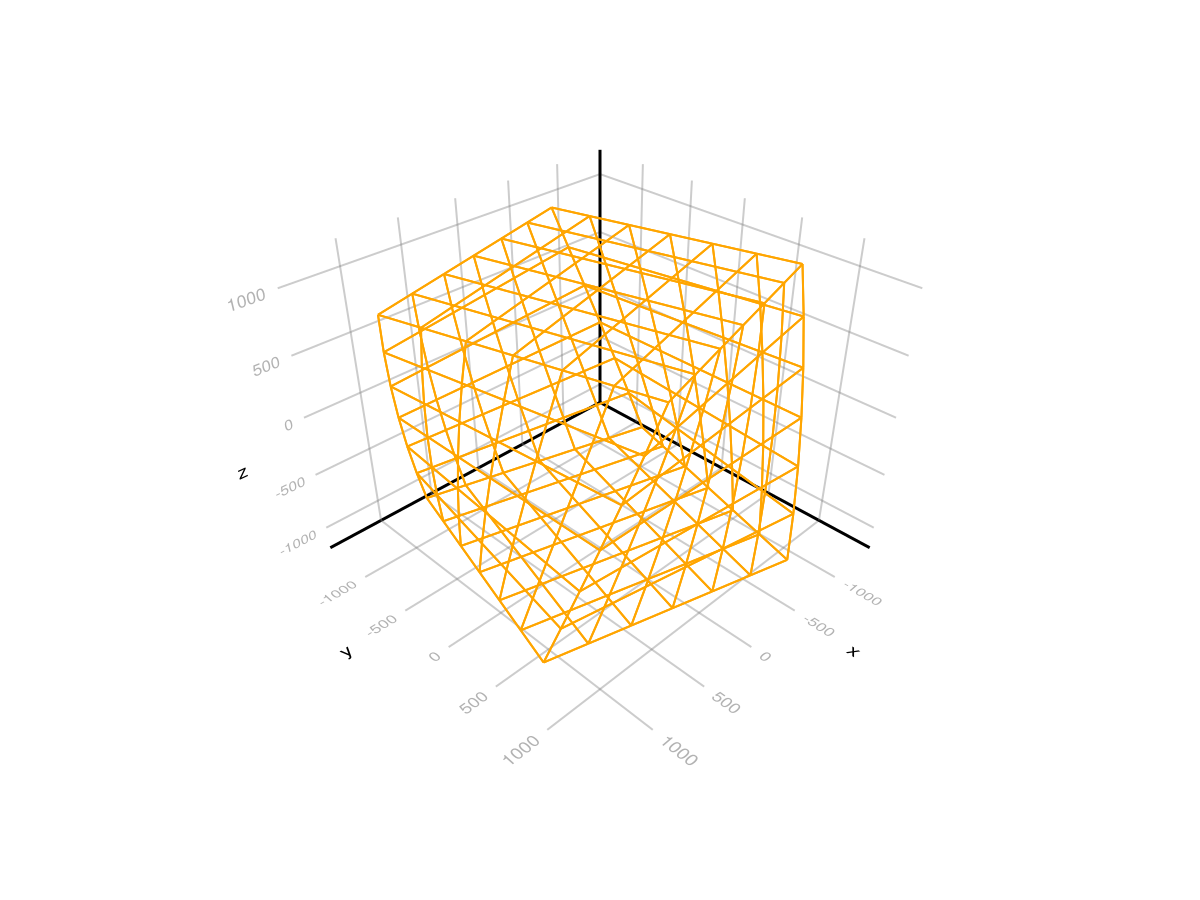

G4SubtractionSolid

box1 = G4Box("box1", 10,10,10)
tub1 = G4Tubs("tub1",0,7,11,0,2π)
sub1 = G4SubtractionSolid("sub1", CxxPtr(box1), CxxPtr(tub1))
img = draw(sub1, wireframe=true, color=:green)

Generate random points and check plot the final position using distanceToOut

img = drawDistanceToOut(sub1, 100000)

G4IntersectionSolid

box1 = G4Box("box1", 10,10,10)
t1 = G4Transform3D(G4RotationMatrix(π/4,0,0), G4ThreeVector())
inter1 = G4IntersectionSolid("inter1", CxxPtr(box1), CxxPtr(box1), t1)
img = draw(inter1, wireframe=true, color=:green)

Generate random points and check plot the final position using distanceToOut

img = drawDistanceToOut(inter1, 100000)

G4UnionSolid

tub1 = G4Tubs("tub1",0,5,10,0,2π)
t1 = G4Transform3D(G4RotationMatrix(0,π/2,0), G4ThreeVector())

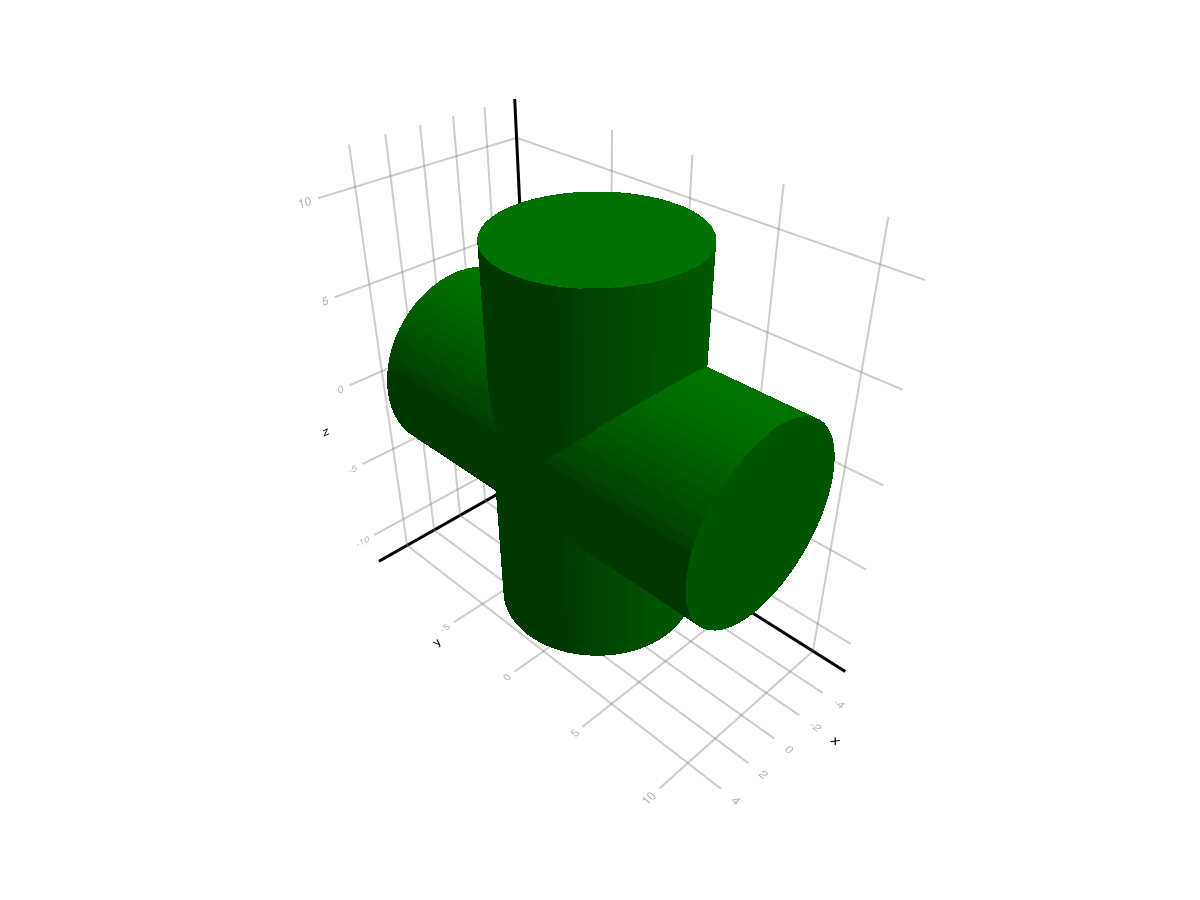

union1 = G4UnionSolid("union1", CxxPtr(tub1), CxxPtr(tub1), t1)
img = draw(union1, wireframe=false, color=:green)

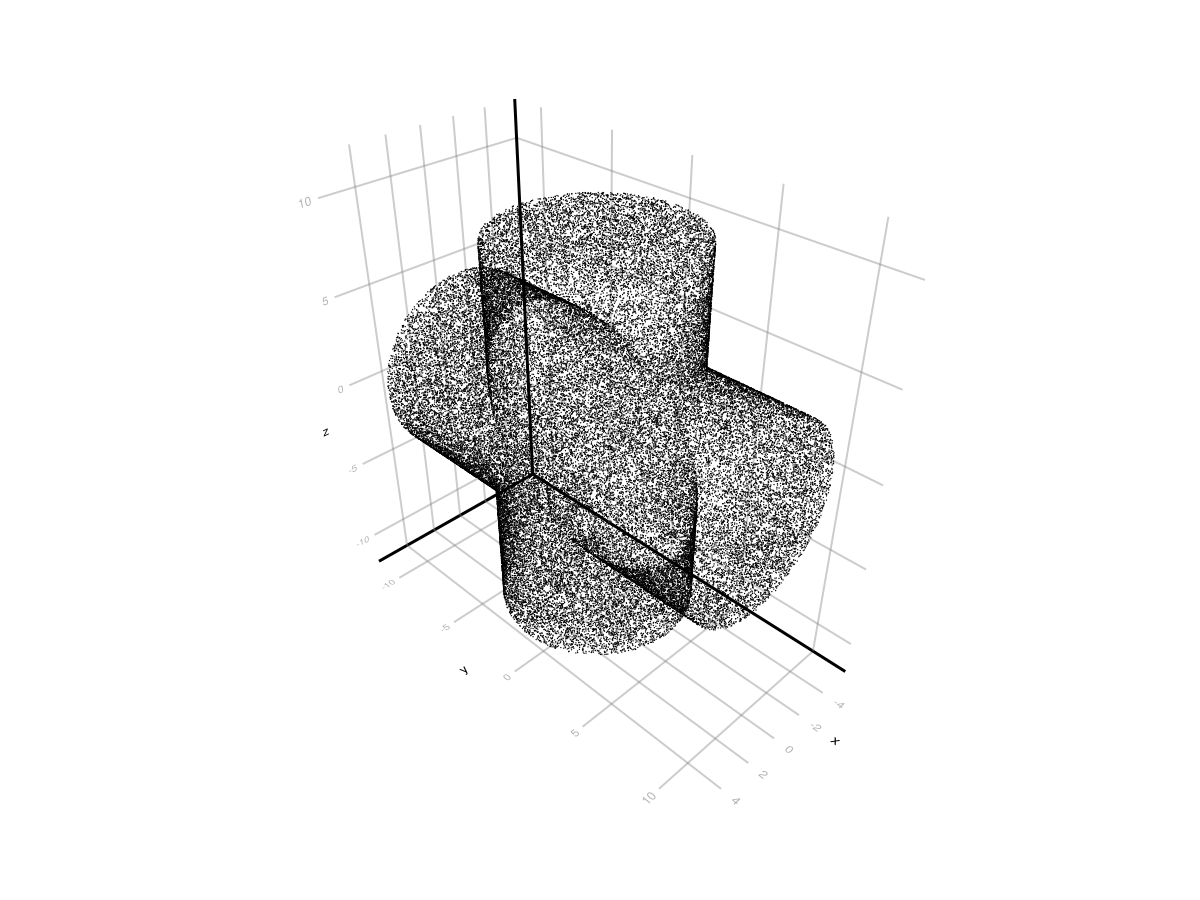

Generate random points and check plot the final position using distanceToOut

img = drawDistanceToOut(union1, 100000)
